SMALL MISSION COMPUTER

SMALL MISSION COMPUTER - SMC

The Small Mission Computer (SMC) is a ruggedized, general-purpose computing device that can be used in a wide variety of applications. The SMC can be integrated on an Unmanned Aerial System (UAS) or used as a ground-based Vehicle Specific Module (VSM) to achieve STANAG 4586 compliance. The SMC unifies the interfaces between the Command & Control (C2) elements on the ground and in the air to provide a common control interface across all classes and types of unmanned aircraft. The SMC supports multiple versions of STANAG 4586 or Unmanned Control Segment (UCS) messaging, as well as a variety of UAS autopilots and payloads. Additional upgrades include: STANAG 4586 interoperability with the U.S. Army, bi-directional control for remote operators, supervised control, multi-vehicle control, autonomous mission storage, autonomous area and route search, storage of payload data (e.g. recording of images and video storage), and an open-interface for third party integration. Contact Kutta to learn about the SMC’s various form factors and custom STANAG 4586 VSM services.

SMALL MISSION COMPUTER - SMC

The Small Mission Computer (SMC) is a ruggedized, general-purpose computing device that can be used in a wide variety of applications. The SMC can be integrated on an Unmanned Aerial System (UAS) or used as a ground-based Vehicle Specific Module (VSM) to achieve STANAG 4586 compliance. The SMC unifies the interfaces between the Command & Control (C2) elements on the ground and in the air to provide a common control interface across all classes and types of unmanned aircraft. The SMC supports multiple versions of STANAG 4586 or Unmanned Control Segment (UCS) messaging, as well as a variety of UAS autopilots and payloads. Additional upgrades include: STANAG 4586 interoperability with the U.S. Army, bi-directional control for remote operators, supervised control, multi-vehicle control, autonomous mission storage, autonomous area and route search, storage of payload data (e.g. recording of images and video storage), and an open-interface for third party integration. Contact Kutta to learn about the SMC’s various form factors and custom STANAG 4586 VSM services.

HARDWARE

Physical Specifications:

  • Total Size:  3.75″ L x 2.75″ W x 1.13″ H
  • Box Size:  3.50″ L x 2.38″ W x 1.13″ H
  • Weight:  4 oz.
  • Material:  Aluminum 6061
  • Connector:  G82YAR-P19UF00-000L (19) pins
  • Mate:  S12YAR-P19XFG0-0000

Physical Specifications:

  • Total Size:  3.75″ L x 2.75″ W x 1.13″ H
  • Box Size:  3.50″ L x 2.38″ W x 1.13″ H
  • Weight:  4 oz.
  • Material:  Aluminum 6061
  • Connector:  G82YAR-P19UF00-000L (19) pins
  • Mate:  S12YAR-P19XFG0-0000

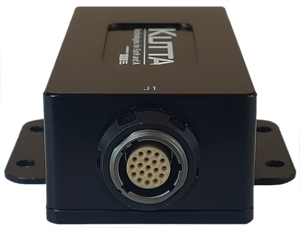

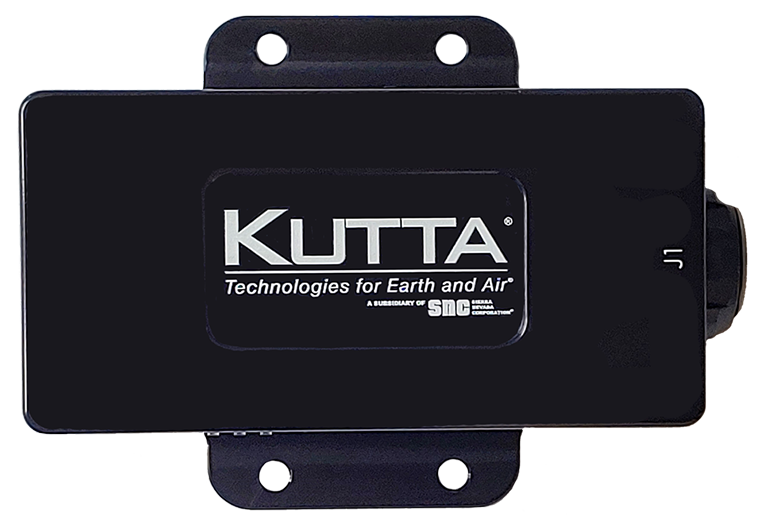

SMC Sides

General Specifications:

  • Processor:  Quad-core ARM Cortex-A53 CPU, 1.8GHz
  • Memory:  4GB LPDDR4
  • Storage:
    • 16GB – 64GB eMMC (options)
    • SD card slot
  • Temp Range:  -40C to 85C
  • Input Voltage:  6-36 VDC
  • Power:  Less than 3 Watts

General Specifications:

  • Processor:  Quad-core ARM Cortex-A53 CPU, 1.8GHz
  • Memory:  4GB LPDDR4
  • Storage:
    • 16GB – 64GB eMMC (options)
    • SD card slot
  • Temp Range:  -40C to 85C
  • Input Voltage:  6-36 VDC
  • Power:  Less than 3 Watts

I/O:

  • 2x USB2.0 dual-role ports
  • 2x UART
  • Ethernet:  10/100/1000
  • 2x SPI
  • 2x I2C
  • 3x general purpose PWM
  • Up to 40x GPIO

I/O:

  • 2x USB2.0 dual-role ports
  • 2x UART
  • Ethernet:  10/100/1000
  • 2x SPI
  • 2x I2C
  • 3x general purpose PWM
  • Up to 40x GPIO
