Small Mission Computer

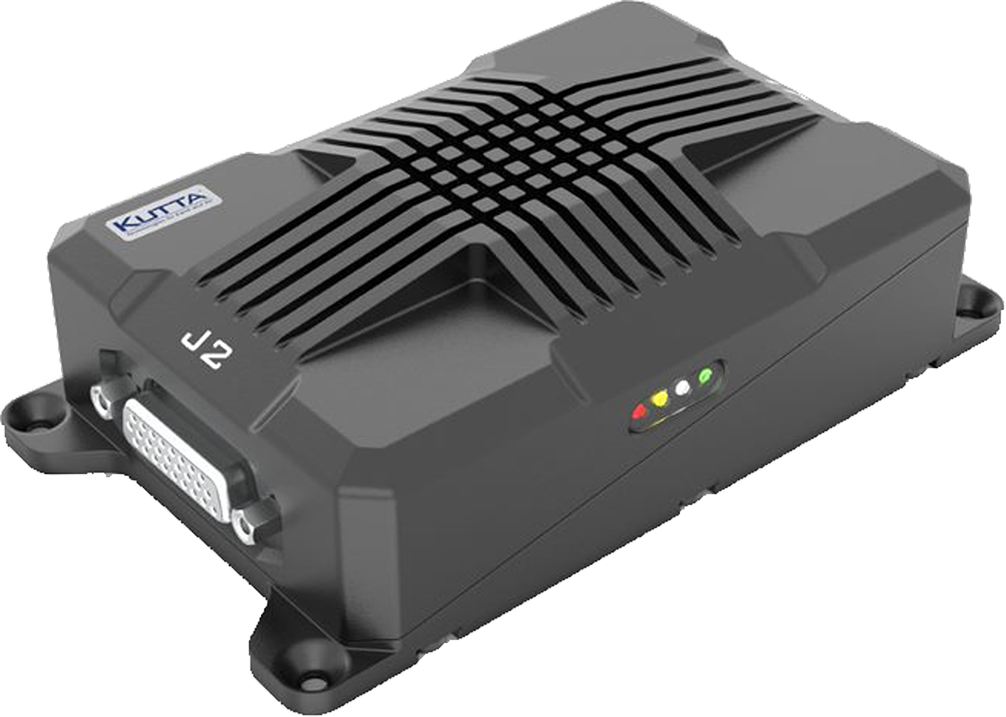

Small Mission Computer (SMC)

The SMC is a ruggedized, general-purpose computing device that can be used in a wide variety of applications.

Request for Quote
  • Low power, ruggedized, versatile computing device
  • Can be utilized in a wide variety of mission-critical industrial and military applications
  • Designed for integration on Uncrewed Aerial Systems (UAS) and ground-based Vehicle Specific Modules (VSM) to achieve STANAG 4586 compliance
  • Unifies the interfaces between the Command and Control (C2) elements on the ground and in the air to provide a common control interface across all classes and types of uncrewed aircraft
  • Supports multiple versions of STANAG 4586 or Uncrewed Control Segment (UCS) messaging
  • Supports a variety of UAS autopilots and payloads
FEATURES:
• 1.8GHz Quad-core ARM Cortex-A53
• Real-time 800MHz Cortex-M7 co-processor
• Neon Media Processor Engine (MPE)
• AI/ML NPU 2.3 TOPS
• 2D/3D GPU GC7000UL/ GC520L
• Up to 8GB LPDDR4 memory, up to 128GB eMMC storage
• USB 3.0 available
• Additional Storage: 1TB standard, options available

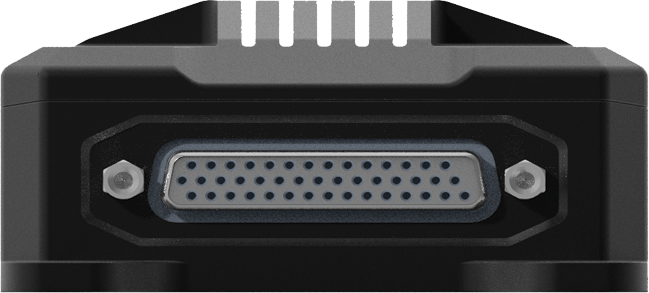

J1 = HDF-R44-213L461 (44 pin Connector)
• (2) 1000/100/10 Mbps Ethernet
• USB 2.0 (High Speed)
• GPIO (PWM, CTS, RTS)
• UART (Debug UART)
• Power Input (6 – 36 VDC)
• RS485
• 12C

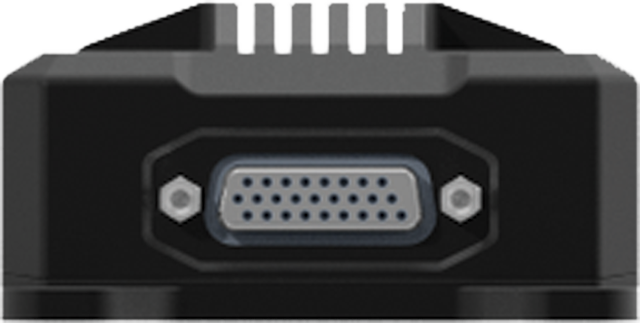

J2 = HDF-R26-213L461 (26 pin Connector)
• (2) USB 2.0 (High Speed)
• UART
• CAN
• SPI
• I2C

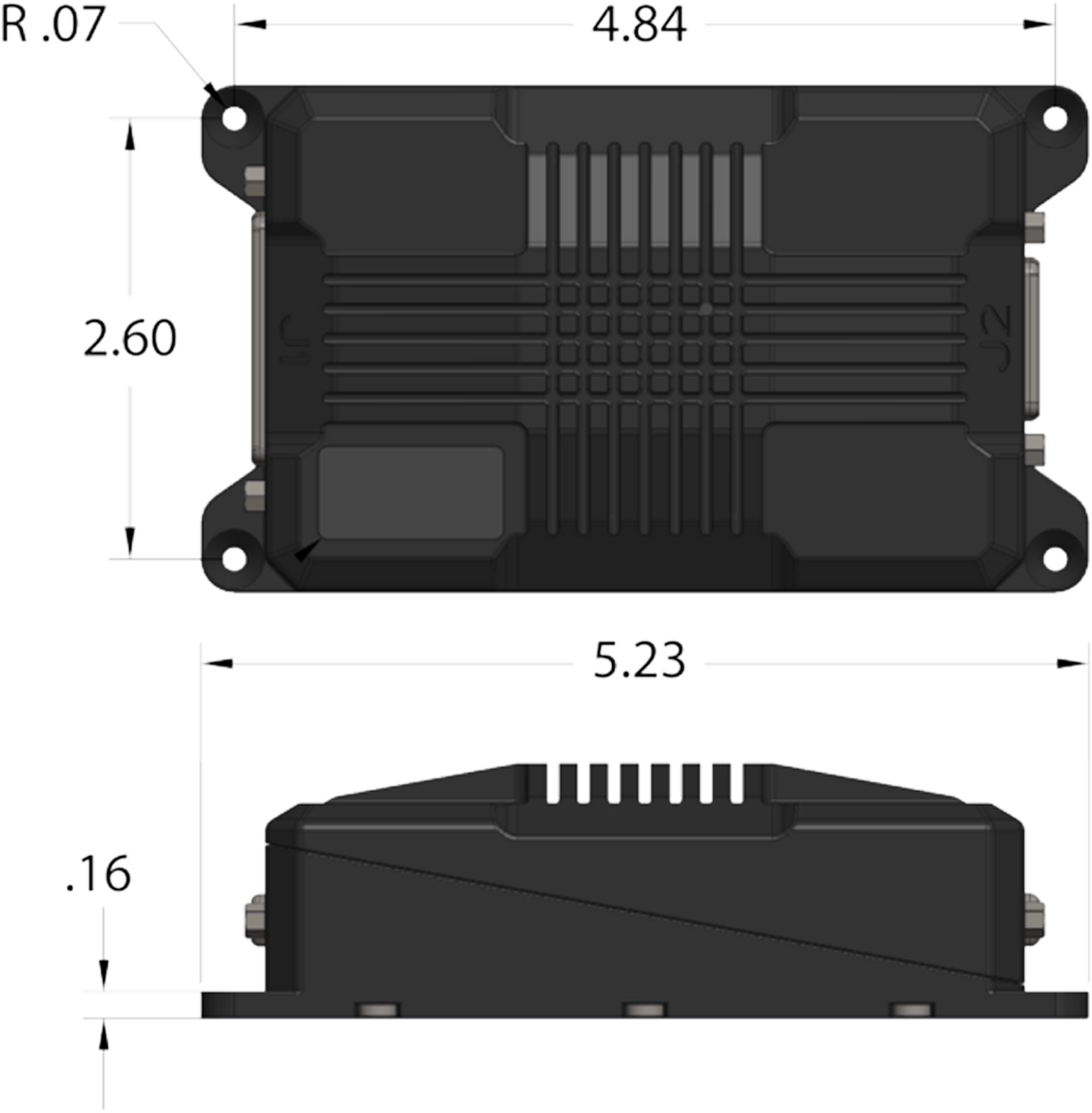

Physical Specifications:
• Total Size: 5.2” L x 3.0” W x 1.5” H
• Board Weight: 3.4 oz (0.21 lbs)
• Total Weight: Alum: 325 grams/Magn: 251 grams
• Temp Range: -40C to +85C
